Brass Y Strainer
| Item: | Brass Y Strainer | Size: | 1/2" - 4" |
|---|---|---|---|
| Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
| Filter: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
| High Light: | Female x Female Brass Y Strainer,HPb 57-3 Brass Y Strainer,EAC brass wye strainer | ||
1/2 " To 4 " 16 Bar Brass Y Strainer
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Cap: Hexagonal structure, by high-density forging, is easy to revolve to take out the filter.
Filter: Made of stainless steel 304, and can be taken out for cleaning after long-term use.
Seat: Made by pure PTFE, with high elasticity and wear resistance and is not easy aging.

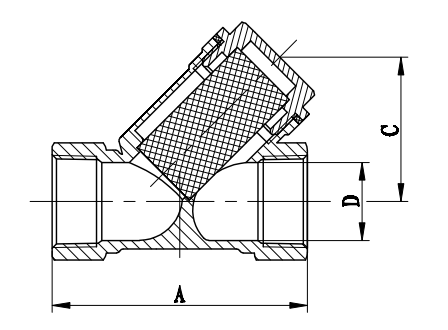

Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
A | 56.5 | 69 | 80 | 96 | 105 | 125 | 134.8 | 156 | 181.5 |
| C | 32.5 | 36 | 42 | 52.5 | 61.5 | 75 | 85 | 101 | 123 |
| D | 18 | 22.5 | 28.5 | 36 | 42.5 | 54 | 65 | 76 | 97 |
| PN | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass |
| 2 | Cap | Brass |
| 3 | Seat | PTFE |
| 4 | Filter | Stainless Steel |
