Item: | Brass Swing Check Valve | Size: | 1/2" - 4" |
---|---|---|---|
Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
Flap: | Brass | Screw: | Brass |
Working Pressure: | 16 Bar(232 Psi) | Thread: | ISO228 (equivalent To DIN 259 And BS2779) |
Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) | ||
High Light: | HPb 57-3 Brass Swing Check Valves,DIN 259 Brass Swing Check Valves,HPb 57-3 4 inch swing check valve |
1/2 " To 4 " 16 Bar Brass Swing Check Valve
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Flap: With hard sealing structure, is not easy to abrade after long-term use, with excellent sealing performance, and can be used in various environments.

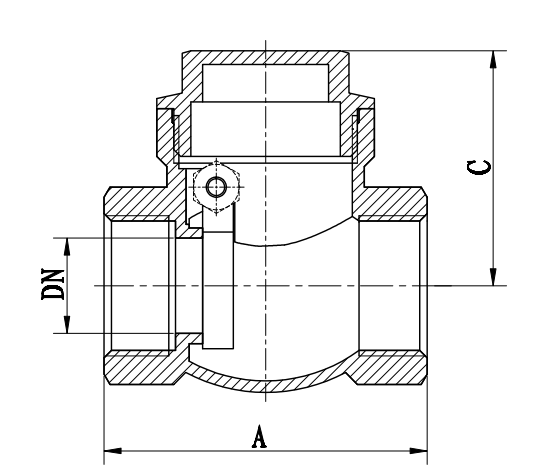

Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
A | 47.5 | 56 | 63 | 71 | 80.5 | 93 | 105 | 123 | 162 |
C | 34.5 | 39 | 46.5 | 51 | 59.5 | 67 | 77 | 81 | 101 |
DN | 14 | 18 | 22 | 28 | 33.5 | 43 | 48.5 | 64 | 83 |
Materials of Parts
No. | Part | Materials |
1 | Body | Brass |
2 | Bonnet | Brass |
3 | Flap | Brass |
4 | Screw | Brass |
