Item: | Brass Gate Valve | Size: | 1/2" - 4" |
---|---|---|---|
Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
Handle Material: | Steel Handle | Filler Material: | PTFE |
Nut: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
High Light: | ACS 4" brass gate valve,BS 2779 4" brass gate valve,ACS 4 inch gate valve |
1/2 " To 4 " 16 Bar Brass Gate Valve With Steel Handle
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: Made of brass material in good quality to ensure wall thickness and is quite durable.
Brass Valve Stem: Made of hot rolled brass with strong hardness and can effectivley avoid deformation and fracturing.
Brass Gate: Made by special high precision CNC machines, the sealing surface is as smooth as a mirror with excellent sealing performance.
Filler: Made of PTFE in good quality, with excellent sealing performance to prevent leakage.
Hexagaonal Nut: Made of brass material in good quality, with strong tensile strength, good toughness and without deformation and cracking after long-time use.
Handle: Made of steel in good quality, surface painting, not easy to oxidize and rot. Novel apperance and confortable using feeling.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.

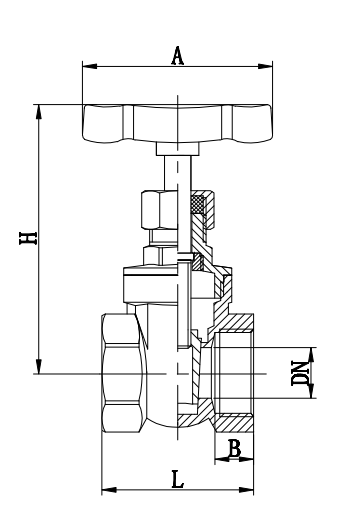

Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
A | 50 | 55 | 60 | 70 | 80 | 90 | 100 | 110 | 125 |
B | 13 | 14 | 15.5 | 18 | 18.5 | 19 | 22 | 26 | 27 |
H | 78 | 85 | 95 | 115 | 125 | 145 | 185 | 200 | 245 |
L | 43 | 48 | 54 | 60 | 63 | 70 | 79 | 97 | 100 |
DN | 14 | 19 | 24 | 31 | 37 | 47 | 60 | 75 | 90 |
PN | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Materials of Parts
No. | Part | Materials |
1 | Body | Brass |
2 | Gate | Brass |
3 | Filler | PTFE |
4 | Bonnet | Brass |
5 | Lock Cap | Brass |
6 | Stem | Brass |
7 | Handle | Steel |
8 | Nut | Stainless Steel |
