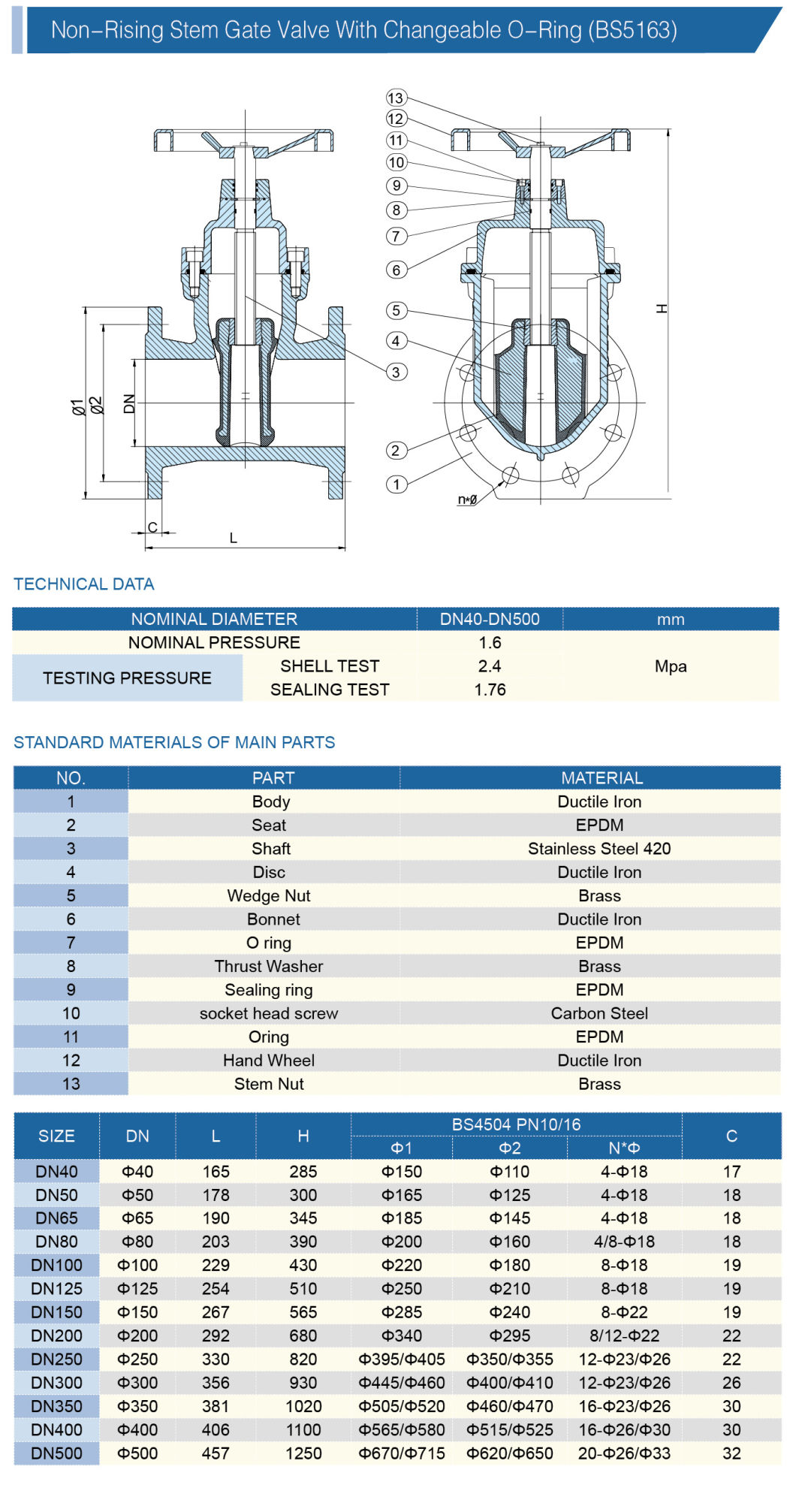

Non-Rising Stem Resilient Gate Valve
Detail
STANDARD MATERIAL OF MAIN PARTS
NO.
PART
MATERIAL
1
Body
Cast Iron, Ductile Iron
2
Seat
NBR,EPDM, Viton,Neoprene,HYPALON,Silicon
3
Shaft
Stainless Steel416,316,304
4
Disc
Ductile Iron+Ni,CF8,CF8M,Bronze
5
Pin
Cast iron Stainless Steel
6
Bushing
PTFE,Bronze
7
O-Ring
NBR,EPDM
